Viper Wire Rope Lubrication
Each Viperkit will be delivered complete in an aluminum storage box. The only thing that needs to be ordered are the Seals, Scraper Plates (except Mini) and optional Viper Rope Cleaners depending on the wire rope construction.
Viper for safe, fast, clean and effective wire rope maintenance

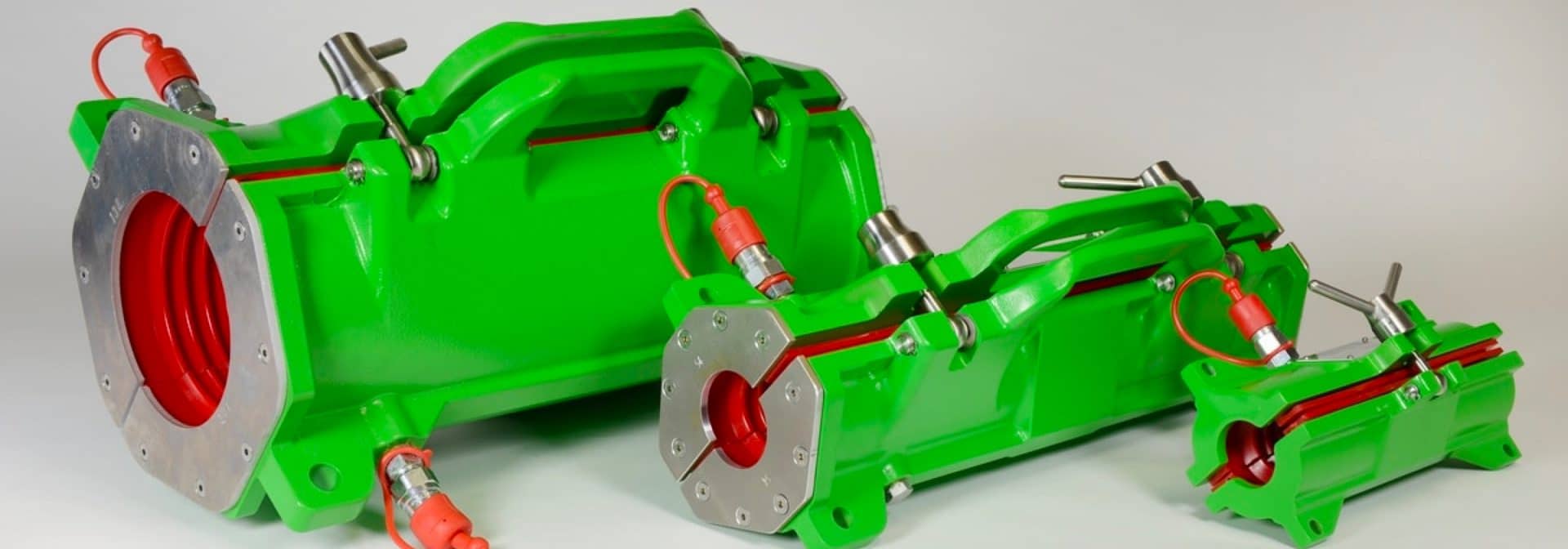

De Viper unit is available in 3 different models:
This kit will be delivered including:
- Viper Mini MK3 lubricator collar, cast aluminium, includes lubricant delivery line quick connect coupling
- Viper MK3 high pressure high flow 50:1 – 2.9kg/min grease pump to suits 20kg drum
- Air control valve, Air regulator with gauge, Male quick connect fitting
- Four (4) meter, high pressure, 3/8” hydraulic hose complete with female quick connect couplings on each end
- Two (2) x 2 meter ratchet straps rated to 500kg
- Four (4) x “Bow” shackles
- Heavy duty aluminium storage case with stainless steel fixtures
This kit will be delivered including:
- Viper Mid MK2 lubricator collar, cast aluminium with inbuilt handles, includes lubricant delivery line quick connect coupling and excess lubricant fitting
- High pressure high flow customized Viper 45:1 – 4.5kg/min grease pump to suit 20kg
50kg/180kg drum sizes - Air control valve, Air regulator with gauge, High pressure grease flow control valve, Male quick connect fitting
- Four (4) meter, high pressure, ½” hydraulic hose complete with female quick connect couplings on each end
- One (1) meter clear hose for excess lubricant discharge
- Two (2) x 2 meter ratchet straps rated to 500kg
- Four (4) x “Bow” shackles
- Viper collar shoulder carry strap
- Heavy duty aluminium storage case with stainless steel fixtures
This kit will be delivered including:
- Viper Maxi MK2 lubricator collar, cast aluminium with inbuilt handles, includes lubricant delivery line quick connect coupling and excess lubricant fitting
- High pressure high flow customised Viper 50:1 4.5kg/min grease pump to suit 180kg
drum (optional extra high flow 13kg/min) - Air control valve, Air regulator with gauge, High pressure grease flow control valve, Male quick connect fitting
- Ten (10) meter, high pressure, 3/4” hydraulic hose complete with female quick connect couplings on each end
- One (1) meter clear hose for excess lubricant discharge
- Two (2) x 4 meter ratchet straps rated to 1200kg
- Four (4) x “Bow” shackles
- Viper collar shoulder carry strap
- Heavy duty aluminium storage case with stainless steel fixtures
-
-
VIPER MID MK2
- For wire ropes form 6mm - 67mm
- 4.5kg p/m grease pump for 18kg pails
- Most successful and most sold wire rope lubricator worldwide
- The Viper Wire Rope Lubricator is supplied as a complete package, with all of the components required to get you started (optional Seals, Scraper Plate and Viper Rope Cleaner)
-
VIPER MAXI MK2
- For wire ropes from 50mm - 165mm
- Including 4.5kg/min grease pump for 190kg drums
- Optional 13kg/min grease pump for a faster wire rope lubrication for larger diameters (>80mm)
- The Maxi Viper collar comes complete with twin lubricant inlets that provide maximum lubricant coverage for large wire ropes
- The viper wire rope lubricator is supplied as a complete package (optional Seals, Scraper Plate and Viper Rope Cleaner)
-
- Viper Mini
-
- Viper MKII op een Offshoreschip
-
- Viper MKII tijdens smeren
-
- Verschil gesmeerd / niet gesmeerd
